AI system for outdoor use

AIE800-904-FL enables AI applications directly on field devices. Featuring IP67-rated housing, industrial-grade anti-vibration, wide operating temperature capabilities and wide voltage AC input, plus multiple M12-type I/Os, the AIE800-904-FL is suitable for severe applications in outdoor environments. Taking traffic management as an example, a high-performance system that can accurately detect, record, process, and transmit huge streams of data is indispensable for a smart city.”

AIE800-904-FL is a robust Artificial Intelligence (AI) embedded system. This AI inference system adopts the NVIDIA® Jetson Xavier™ NX platform which has a powerful 6-core NVIDIA Carmel ARM® v8.2 (64-bit) processor and 384-core NVIDIA Volta™ GPU. In addition to the superior performance and power advantage of accelerated computing, the AIE800-904-FL is designed with a high IP67 degree of protection from water and dust ingress. Moreover, it comes with a wide operating temperature range of -30°C to 50°C and a vibration endurance for up to 3Grms. It also features M12 type I/O connectors and four waterproof N-jack antenna openings for operational stability in rugged environments. The NVIDIA Jetson-based outdoor edge AI system is the perfect platform for traffic management, city security, smart manufacturing, and more.

The AIE800-904-FL has 8GB of LPDDR4x memory and 16GB eMMC onboard. It comes with a wide range 100 to 240V AC power input with 10kV surge protection. The AI inference system features one M.2 Key B 2242 SSD socket with a high-speed PCIe 2.0 x2 NVMe interface for extensive storage needs. In addition, the embedded box PC is equipped with one GbE PoE port for IP camera video surveillance solutions including traffic flow monitoring, license plate recognition, vehicle recognition, intrusion detection and access control.

The AIE800-904-FL is an excellent AI embedded system that supports one C3 USB 2.0 port, one M12 X-Code Gigabit PoE port, one M12 S-Code connector for AC power supply and one C3 HDMI port supporting full HD. The four waterproof N-jack antenna openings provide flexibility for WLAN or WWAN usage. Furthermore, the AI rugged computer has a full-size PCI Express Mini Card as well as a SIM card slot for 4G/LTE/GPRS connections. In addition, it supports the open-source operating system Linux Ubuntu 18.04 which is highly customizable to serve different needs. Apart from supporting Linux Ubuntu 18.04, it integrates Allxon Device Management Solutions (Allxon DMS) to provide a cost-effective and simplified device management solution with comprehensive remote management capabilities. Its flexible mounting options including wall mount and VESA mount.

Advanced Features:

  • IP67-rated design, specifically for outdoor environments
  • NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
  • High performance, GPU accelerated computing
  • -30°C to +50°C operating temperature range
  • 100 to 240 VAC wide range power input with 10kV surge protection
  • 4 N-jack antenna openings with waterproof design
  • Features M12 lockable I/Os
  • 1 IEEE 802.3at GbE PoE (30W)
  • Supports Allxon Device Management Solutions (Allxon DMS)


Ebox800 900 Fl


Tillbaka till alla artiklar

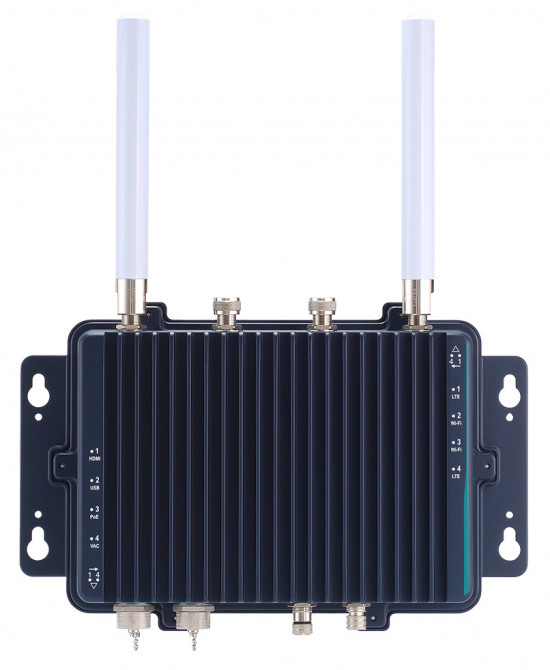

Aie800 904 Fl Front Ant
