Streched, bar-type, TFT panels

The streched, bar type display gain marketshares as they allow for high-definition images and messages across a large surface area. With excelent viewing angles, the below 3,9″ and 7,0″display is suitable in both horisontal (landscape) and vertical (portrait) installations. Featuring industrial lifespan, high brigtness and industrial temperature range. Available with, or without PCAP multitouch and Cover Lens that can be customized to fit your application design requirements.

Contact us for other sizes and customizations.

Send a request »

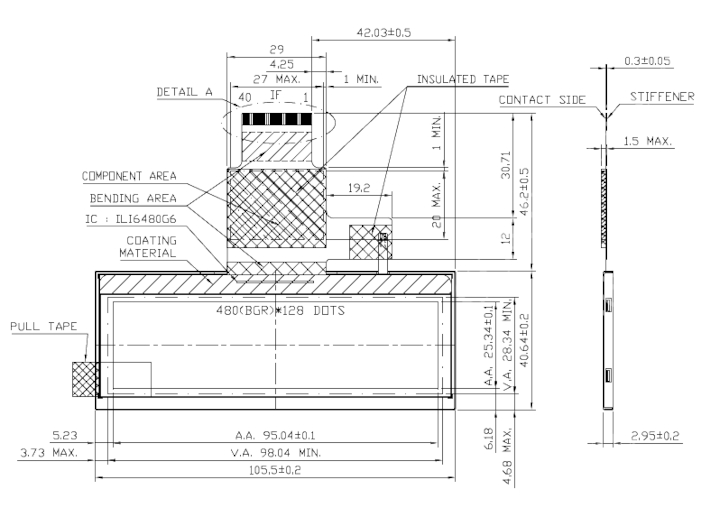

3,9″ Technical specifications



  • 3,9″ IPS TFT display
  • Resolution 480 x 128
  • Brigtness 500cd/m2
  • PCAP touch (optional)
  • 24-bit parallel interface
  • Operating temp -20 to +70°C
  • Customized Coverlens (optional)



Datasheet

7,0″ Technical specifications



  • 7″ IPS TFT display
  • Resolution 1424 x 128
  • Brigtness 400cd/m2
  • PCAP touch
  • 4-lanes MIPI interface
  • Operating temp -30 to +80°C
  • Coverlens can be customized



Datasheet

Industrial Applications



• Meassurement instruments

• Audio and Video equipment

• Dishwasher, Fan and Stove

• Medical equipment

• Elevator and Escalators

• Sewing machines

• And many, many more…

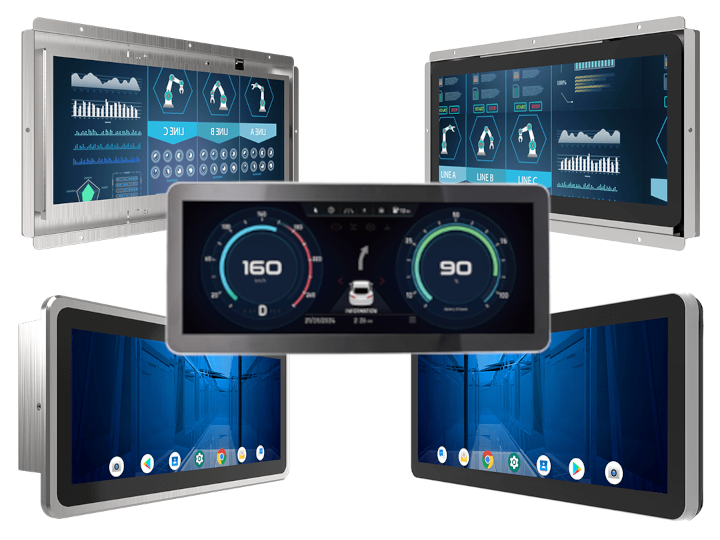

Also view our other extra wide products
12,3" series and 8,8" Panel PC
