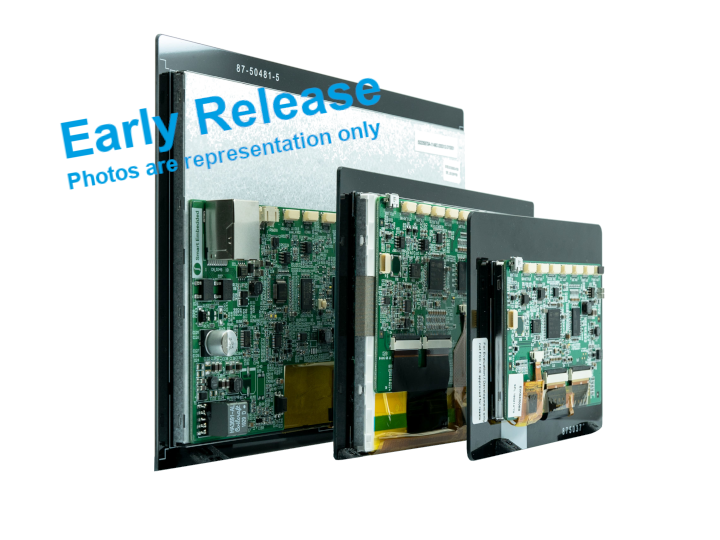

Smart Display with STM32U5

Product Overview

• Display size 4,3″, 5,0″, 5,7″and 7,0″

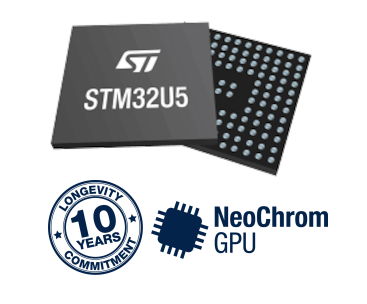

• STM32U599 Microcontroller
• 7-36Volt Input range
• RS485, CAN and USB interface
• 30-pin GPIO interface for add-on boards
• Operating temp. -20 to +70°C
• SDRAM Framebuffer memory, Flash memory for Graphics
• Customizable to fit your exact needs

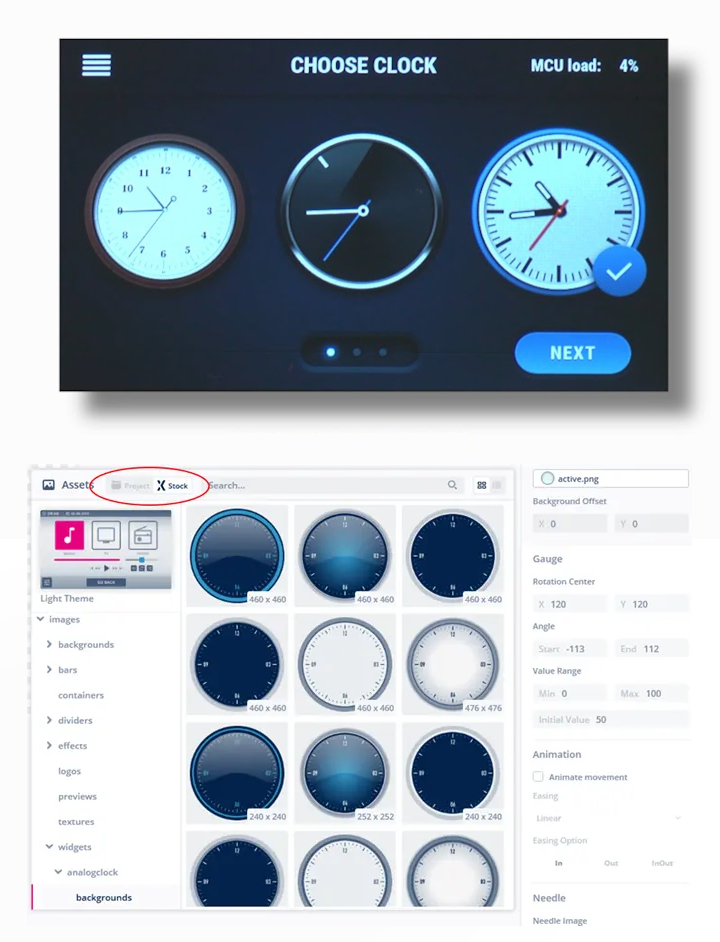

TouchGFX – Create new modern GUI with ease

TouchGFX is an advanced free-of-charge graphic software framework optimized for STM32 microcontrollers. Taking advantage of STM32 graphic features and architecture, TouchGFX accelerates the HMI-of-things revolution through the creation of stunning, smartphone-like graphic user interfaces.

The TouchGFX framework includes the TouchGFX Designer, an easy-to-use, drag-and-drop-based graphic-building PC tool, and the TouchGFX engine, a powerful and optimized graphic core.

Easy creation of multiple screen contents and associated transitions

Widgets:

• Wide selection of customizable widgets, such as a swipe container and cycle progress, for effortless GUI creation

Skins:

• Set of ready-to-use graphical skins enabling consistent prototyping with no need for a graphical designer
• No restriction to the use of custom graphics

Interactions:

• Dynamic interactions for the creation of user-friendly applications

Custom container:

• Creation of custom reusable application control
• Easy platform development with a unified look and feel

Text handling:

• Fonts and typographies are specified and managed in one single place
• Full translation service
• Full support of multiple alphabets and scripts such as Latin, Cyrillic, Arabic, Chinese, and Japanese

Code Generation:

• TouchGFXDesigner generates and maintains performant C++ code
• Tool-generated code entirely separated from user code
• All types of code extensions are possible for unique animations as well as system interconnections
• Support of several integrated development environments such as IAR Embedded Workbench, Arm Keil, and GCC-based IDEs
