Self-payment & Kiosk

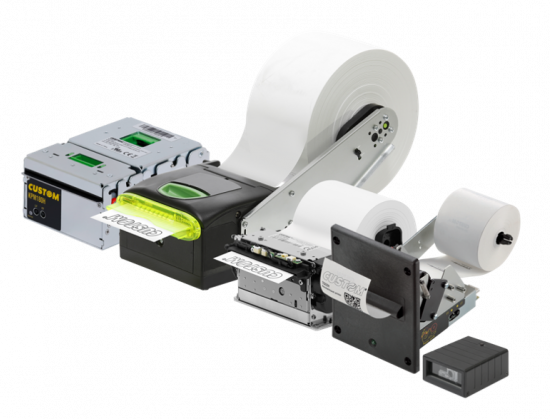

We live in a world where the concept of self-service is becoming increasingly popular, allowing customers to use services independently and save time. Custom’s hardware, software and service solutions are ideal for self-payment kiosks: from vending machines to public and private healthcare facilities, the banking sector, and public administration. Custom provides kiosk printers, self-service printers, cash machine printers, ticket dispensers and OEM scanners. Custom’s quick and reliable solutions for the self-payment & kiosk info sectors have been designed for people looking for the very latest technology in high-quality printing.

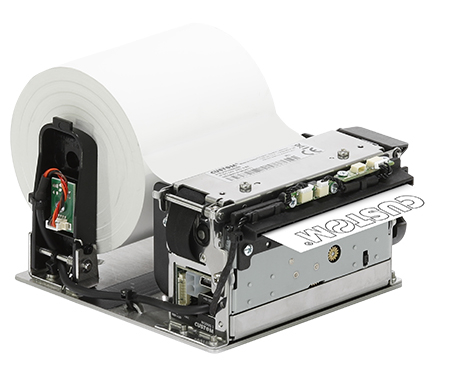

MODUS 3 - Small footprint kiosk printer

Ultra compact thermal printer to meet the needs of slim-line kiosks without sacrificing features and functionality. MODUS 3 joins all the features of a self service printer with an inimitable compactness (116Lx50Dx62H), is super-light (only 400g) and full opening lid, easy to inspect mechanism, guarantees easier maintenance.

  1. Ultra-compact the smallest footprint kiosk printer on the market
  2. Flexibility extended working temperature and adjustable paper width
  3. Easy intergration (plug&play) in all self-service applications
  4. Advanced paper management exclusive anti-jan system, total and partial cut
  5. Max control setup the printer or draw up a ticket layout with our apps

Datablad Modus 3

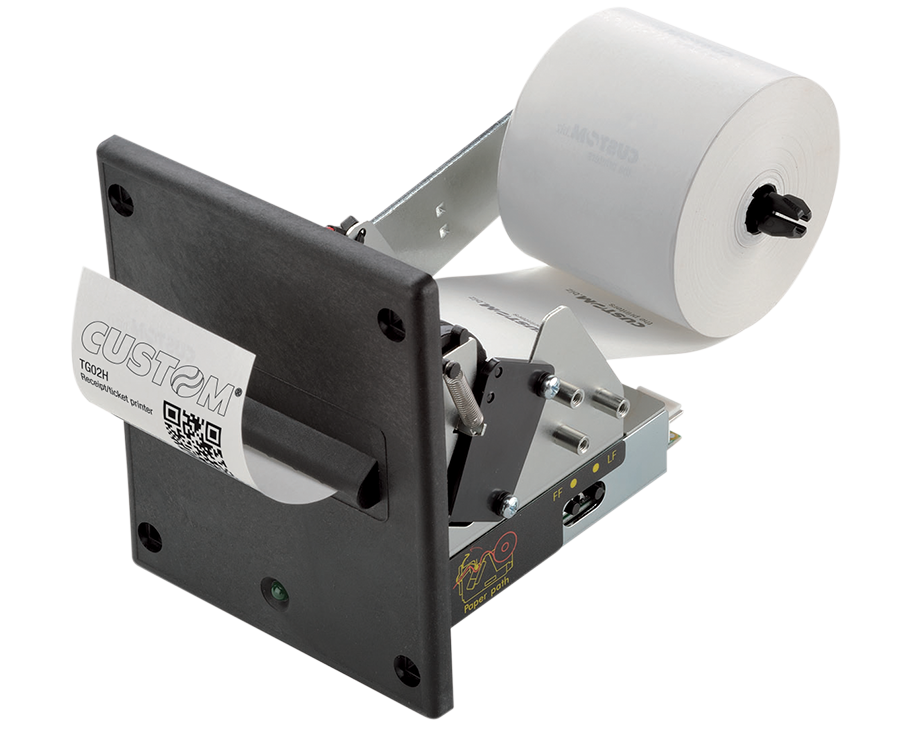

TG02H - Extremely compact and versatile ticket printer

Extremely compact and versatile ticket printer, for easy installation and panel mounting. TG02H isavailable with black plastic bezel.

  • Best quality print quality (200 DPI)
  • Paper width: 57mm
  • Printing > 80 mm/sec
  • Up to 90mm paper roll diameter
  • RS232 + USB interfaces (serial TTL with welding )
  • Highly reliable tear off system
  • Sensors: head temperature, paper presence, near paper end, anti-jamming
  • Power supply: 12V and 24V


  • 1D/ 2D (QRCODE) barcode printing feature
  • International fonts on-board: any language available
  • Patented anti-jamming system
  • Outdoor applications: 20/+ 70°C operating temperature
  • Low power consumption in stand-by mode
  • Roll holder included


  • Gaming machines
  • Queue management systems
  • Vending machines
  • Self-service kiosks

Datablad Tg02 H

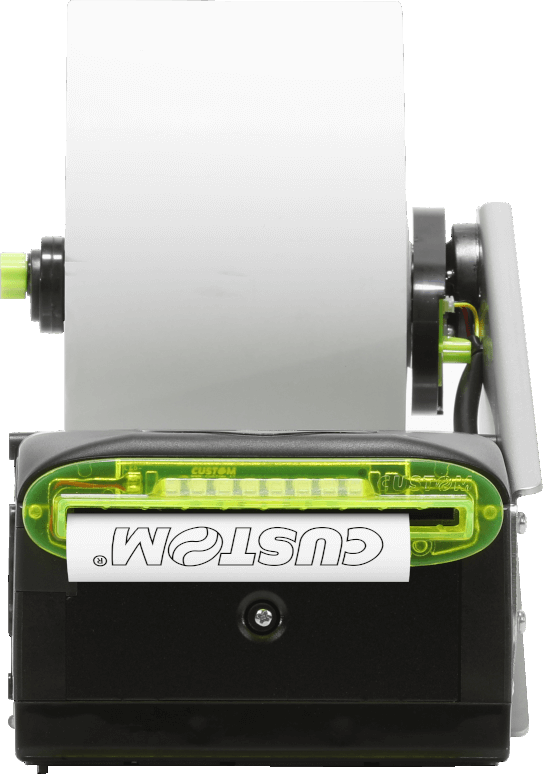

VKP80III - Top seller kiosk printer with a unique green paper mouth

VKP80III is a kiosk printer for receipts and tickets, top seller and reference product in more than 70 countries in the world. Compact, flexible and sturdy it’s also full of features, such as the high performing processor and the long-lasting printing head. It’s suitable for any kind of kiosk, thanks to the adjustable roll holder and the possibility mount it on both sides, overall 6 different positions. VKP80III is equipped with a patented anti-jamming system with printer cleaning command and jamming removal, illuminated bezel and paper presenter with eject/retract function, with the possibility to work also in the fiscal markets thanks to a dedicated model.

  1. Rich in technology: present/eject/retract full capability
  2. Extremely compact and flexible way to answer of customer needs
  3. Anti-Jamming system with printer clean command and jan removal


  • The most compact high-end/top of the range kiosk printer with small footprint: 116 × 143 × 76 MM
  • Paper roll (up to 250 mm with optional roll holder)
  • Paper width from 50 to 82.5 mm
  • Speed > of 250 mm/s
  • Multi-Position paper roll holder (3 positions for both sides)
  • Ergonomic paper loading from the right or left side, suiting all kiosk designs
  • RS232 and USB 2.0 full speed interface (ETH and USB version available)
  • 1D / 2D barcodes printing capability (PDF417, DATAMATRIX, AZTEC, QR CODE)
  • International fonts on board: Any language available
  • Long life printing head (200 KM)
  • Highly reliable cutter: > OF 1,000,000 cuts
  • Illuminated paper bezel
  • Outdoor applications:-20/+70°C working temperature

Datablad Vkp80 III

KPM862 - RFID ticket printer for OEM integration

KPM862 is the ultra-compact, flexible and sturdy top-of-the-range ticket printer.
Thanks to the adjustable paper guides (ticket width from 40 to 86mm) KPM862 is extremely versatile.
It is available in 2 versions: with dual feeder, thanks to which it is possible to manage 2 different types of paper and with Veriprint, a patented Custom system that can instantly check the readability of the data (e.g. barcode) during the ticket printing phase and thus avoids the issue of tickets with dubious validity. KPM862 can be equipped with original CUSTOM HF / UHF RFID antennas, an exclusive CIS sensor, with whom you can read any type of ticket and ensure the alignment. Ideal for modern kiosks with a slim design, less moving parts (cost reduction) and full ticket scanning.

  1. Ultra-Compact and top-of-the-range ticket printer
  2. Adjustable and versatile paper guides, with dual feeder
  3. It detects black mark and gap without manually adjusting the sensors
  4. Stock control activable with an on-line license
  5. Sturdy and resistant thanks to the metal structure


  • Ticket width from 40 to 86 mm
  • Ticket thickness from 70 to 255 GSM
  • Print speed 220 mm/sec
  • Roll dimensions max 300 mm
  • USB / ETHERNET / RS232 interfaces
  • 203 DPI resoslution
  • Head life 100KM / 100M pulses
  • MCBF 1,500,000 cuts
  • 24 VDC ± 10% power supply
  • Operating temperature -20 ° C + 60 ° C

Datablad Kpm862

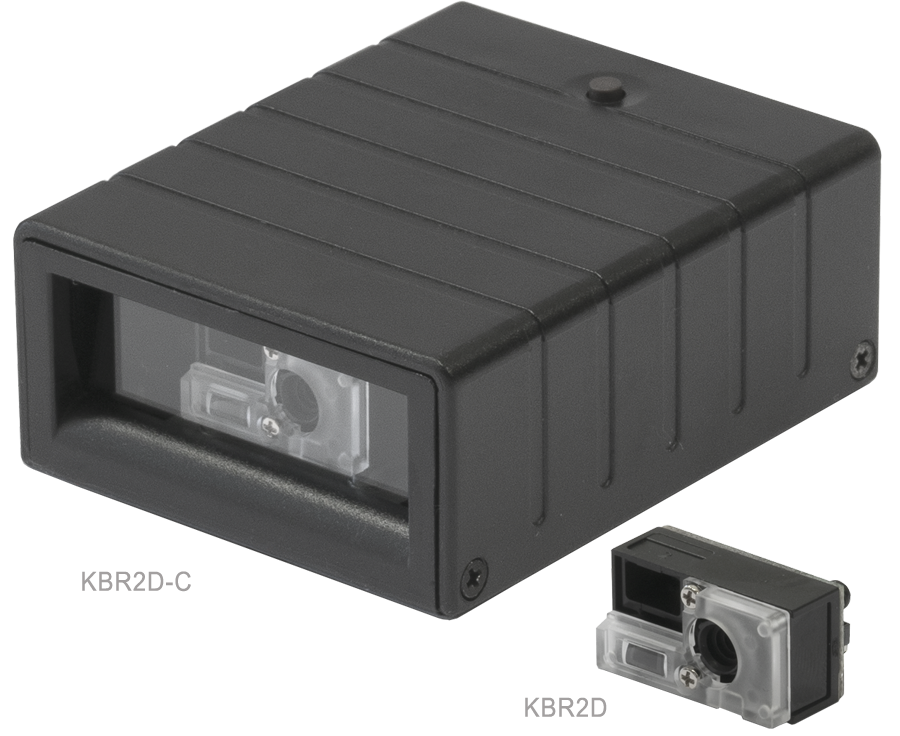

KBR2D - Kiosk Barcode Reader

KBR2D is the family of barcode scanners designed for self-service kiosks, ATMs, price checkers, healthcare and for any OEM application, also available in a plastic case version (KBR2D-C). KBR2D is a high-performance, high-volume omnidirectional scanner, capable of quickly and accurately reading any 1D and 2D barcodes, whether printed on paper (badges, receipts, health bracelets) or displayed on the screen of a smartphone or of a tablet. KBR2D scanners are based on CMOS technology for optimal image sensitivity and dynamic range. KBR2D integration is quick and easy thanks to several mounting options.


  • Easily integrated with various OEM applications
  • 1D and 2D barcode scanning
  • Omnidirectional scanning: no need to align barcode and scanner, ensuring user comfort and protecting productivity
  • Long distance reading from 3 to 28 cm without problems even in direct sunlight (100,000 lux)
  • Reading barcodes on screens of smartphones or tablets even with brightness reduced to 25/30%
  • Red colored pointer for precise aiming and optimal barcode acquisition
  • Flexibility: various external mounting options or internal screw holes
  • Integrated decoder
  • Custom ScannerSet configuration software

Datablad Kbr2 D
