The importance of various sensors in today's electronics is increasing and therefore Martinsson is expanding its sensor range. Our sensors measure / provide information on location, light, color, temperature, humidity, flow, acceleration, vibration and angles.
Tilt Angles: Detects the angle, change the angle.
Acceleration: Detects acceleration.
Vibration: Detects changes in the ongoing movement.
Motion: Detects changes in motion.
Shock: Detects big movements.
Signal Quest specializes in motion sensors. They are very power efficient (50nA).
The sensors are ideal for providing increased battery life in applications where motion should activate the electronics or draw a picture after the equipment's location.
See manufacturer's website
Signalquest
- Temperature: Measures temperature only.
- Temperature and Humidity: Measures temperature and humidity
- Measurement by Sensirions CMOS ® technology.
Proven CMOS ® technology is used to measure humidity and temperature in the sensors with very high accuracy.
- Fluid sensors are available for most liquids.
- Flow Measurement: 1.5 μl / min to 80ml/min
- Measurement by Sensirions CMOS ® technology.
Sensirions fluid sensors work with flow rates from nanoliters to milliliters. They consist of a straight flow channel. It can be plastic or glass. The fluid passes without coming into contact with the environment. The flow is measured with Sensirions CMOS ® technology, which means that the liquid is heated and passes the measurement chip which gives a very accurate measurement.
- Very high accuracy: 3% to 10% depending on type
- Response time: 20ms-40ms depending on the type
- Output: RS232, digital I ² C, Analog
- Several diameters of hose connection
- No moving parts
- Development kit available to quickly start evaluating the sensors.
See manufacturer's web page:
Sensirion
- Differential pressure sensors: Measure pressure differences
- Gas flow sensor: Measures and controls the gas flow
- Measurement by Sensirions CMOS ® technology.
Differential pressure sensors: Measures pressure differences
Measure down to 1 Pa and maximum 500Pa
Zero offset, no deviation
Variable
Analog or Digital I ² C output
Gas flow sensor: Measures and controls the gas flow.
Calibrated and very accurate
Quick response time
Several gases can be measured
Analog or Digital I ² C output
Development kit available to quickly start evaluating the sensors.
See manufacturer's web page:
Sensirion
Ambient Light Sensors: ALS - Detects the ambient light
Color Sensors: Detects colors and color temperature
Proximity sensor: Detects the presence and movement around the product
Linear sensors: Senses of the surroundings with photodiodes
Light Sensors: Detects light to frequency or voltage
Ambient Light Sensors: so-called ALS. Senses the ambient light as the eye curve. IR + photodiode in a hood, 16-bit resolution 1-50lux, LUX output, I2C output. ALS is by proxy.
Color Sensors: Integrated color filters. RGB color, 4 color sensors. 16 bit resolution. I2C output. Can be combined with the proxy.
Proximity sensor: so-called Proxy to detect the presence and movement, 0-1m distance. Also available with ALS and color detection in the same hood.
Linear Sensors: Measures the light intensity of a given surface with photodiode arrays. 64-1536 points. 200-400dpi. 4000:1. Analog or I2C output
Light Sensors: Directly proportional to light intensity. Exit to frequency or voltage. High linearity. No external components. Programmable.
See manufacturer's web page:
TAOS
- Slotted switches / position sensor: Measuring condition and location

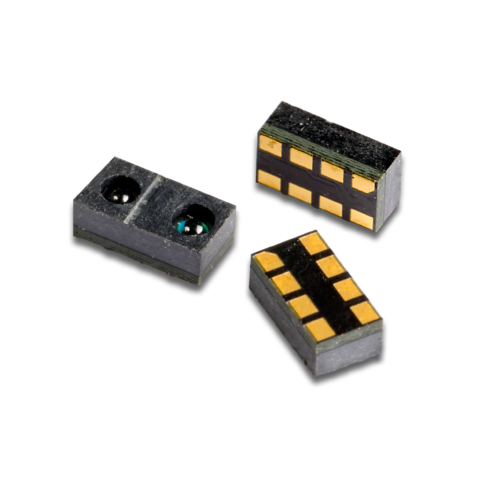

- Reflective: Measure distance and location
- Discrete: Light Diodes
- Optocouplers / opto-isolators: Light Conductor or insulator
Slotted switches/ position sensor: Dual or single channel. 0.08 to 1.27 mm aperture. Application-specific. Choice of mounting features. Cable connection. Flag Operation.
Reflective: Focusing / not focused. 0.1-300mm. Cable connection.
Discrete: IR Led, Photo Diodes, Photo Transistors, Photo Logic, Hall effect, UV, VCSEL, fiber 2.5 Gbps, Point Source
Optocouplers / opto-isolators: Photo Transistors, Photo Logic, Darlington. Insulation 1-50kV, 5MBaud. Available in flexible design.
See manufacturer's web page:
Optek
 |
